Designed to Connect Directly to the Existing Wiring in the Vehicle With Ease!

Steering Wheel Control Interface

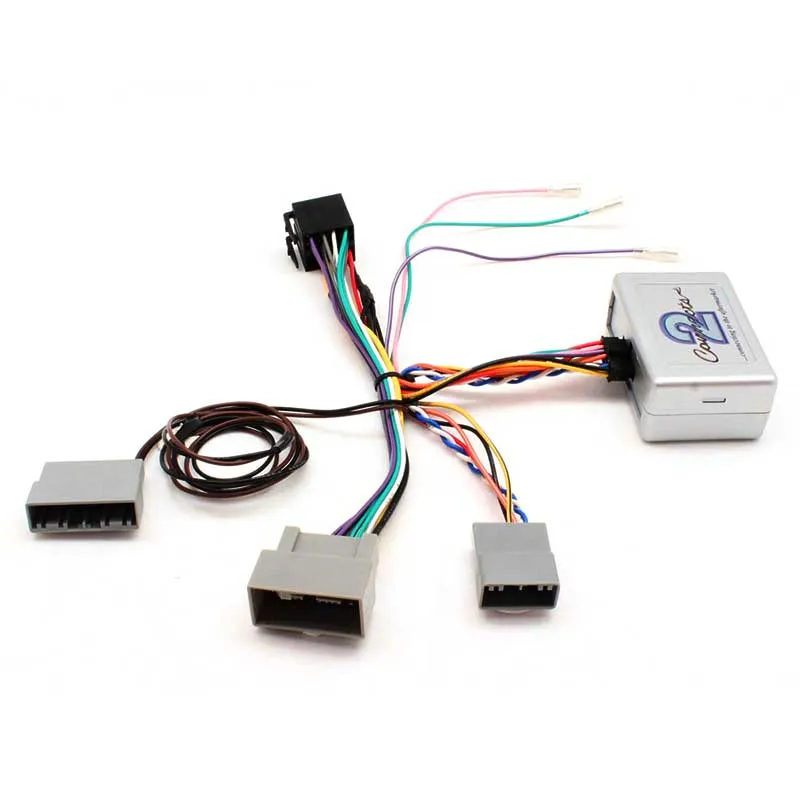

The Aerpro CHHO9C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining the use of your factory steering wheel controls. Engineered to suit various Honda vehicles, the steering wheel control interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly to the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse, and Illumination. The interface also enables adjustment to the vehicle time and date settings via the steering wheel controls (On Selected Models).

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (Sold Separately).
• The aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Suits non-amplified vehicles without navigation.
• Aftermarket headunit must be SWC compatible.
• Enables adjustment to the vehicle time and date settings via the steering wheel controls (On Selected Models).

Features:

• Allows you to upgrade to an aftermarket headunit whilst maintaining the use of your factory steering wheel controls.
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road.
• CAN-BUS integration is compatible, no additional modules are required for CAN-BUS vehicles.
• Provides output feeds for the reverse trigger, park brake, speed pulse, and illumination.
• Enables access to the vehicle settings via the steering wheel controls.
• Fitted with a vehicle-specific plug, no cutting of wires is required.
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (Sold Separately)
• Requires SWC patch lead to provide compatibility with the aftermarket headunit (Sold Separately)

Specifications:

• Interface Type: CANBUS
• Patch Lead Type: C
• Phone Button Compatibility: Yes
• Voice Assistant Button Support: Yes
• Outputs:
  Reverse Trigger: Yes (Purple/White)
  Park Brake: Yes (Green)
  Speed Pulse: Yes (Pink)
  Illumination: Yes (Orange)
  Amp Remote: No
• Other Retention: N/A
• Packaging Type: Side Blister
• Weight: 0.10kg

Vehicle Compatibility:

• Honda Civic Hatchback (2012 - 2015)
• Honda Civic Sedan (2012 - 2015)
• Honda CRV RM (2012 - 2017)
